Chemical Transport Business
(Domestic/International Transport)

JOT offers containers that can be used for both ship and rail transport!

Container Lineup

A wide variety of containers for chemical products

In order to meet the broad transportation needs of today, we own over 7,000 containers with a number of different characteristics. We have put together a prompt delivery system for our ISO tank containers by maintaining accurate inventory control. Our order-made containers fabricated newly just for you to handle cargo with unique characteristics in addition to containers for beaded substances, IBC's and various other options.

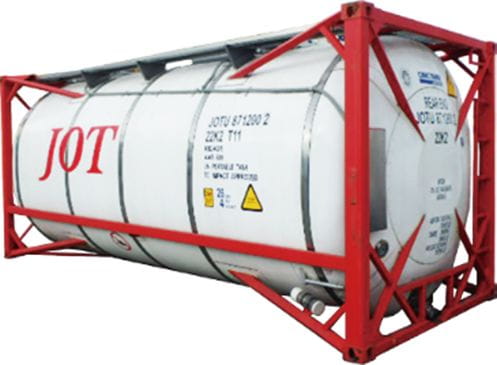

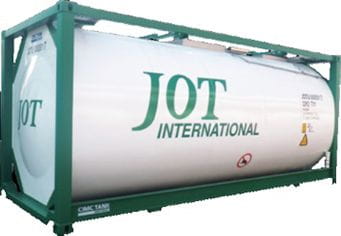

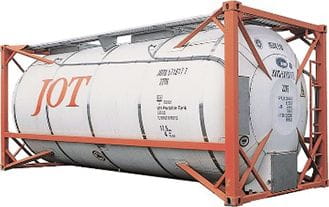

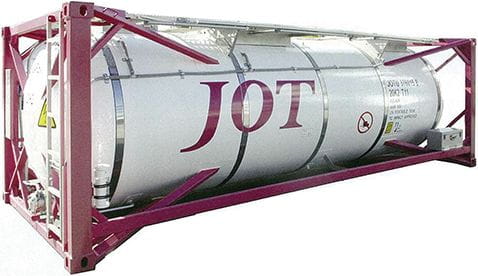

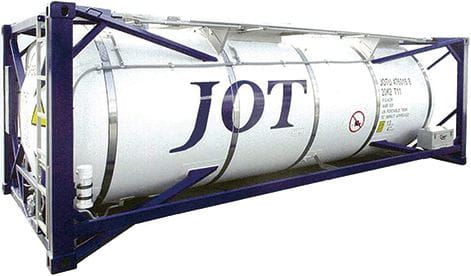

ISO Tank Containers

These 20-foot tank containers complying with international standards can transport liquid products. Of course, all these containers can transport freight not only by ship but also by rail. Our standard (universal) containers are available for prompt delivery(*). *Delivery may require time in some cases depending on container inventory.

Universal Type

※The figure in the frame can be scrolled left and right.

	17,500L Type	21,000L Type	24,000L Type	26,000L Type
Total height	2,591mm	2,591mm	2,591mm	2,591mm
Total width	2,438mm	2,438mm	2,438mm	2,438mm
Total length	6,058mm	6,058mm	6,058mm	6,058mm
Dead weight	3,700㎏	3,500㎏	3,565㎏	3,900㎏
Maximum weight	36,000kg	36,000kg	36,000kg	36,000kg
Tank material	SUS316L	SUS316L	SUS316L	SUS316L
Insulation system	200 mm mineral wool	100 mm mineral wool	50 mm mineral wool	50 mm mineral wool
Safety valve	2.5-Inch single action × 1	2.5-Inch single action × 1	2.5-Inch single action × 1	2.5-Inch single action × 1
Ventilation	1.5-inch ball valve	1.5-inch ball valve	1.5-inch ball valve	1.5-inch ball valve
Manhole	500mm×1, 300mm×1	500mm×1, 300mm×1	500mm×1, 300mm×1	500mm×1, 300mm×1
Top loading port	3-inch butterfly valve	3-inch butterfly valve	3-inch butterfly valve	3-inch butterfly valve
Lower outlet	3-inch ball valve	3-inch ball valve	3-inch ball valve	3-inch butterfly valve

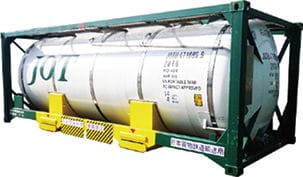

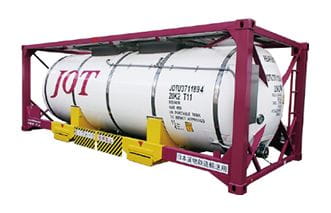

Small Capacity Universal Type

These small capacity containers have fork pockets.

※The figure in the frame can be scrolled left and right.

	11,000L Type	14,000L Type
Total height	2,134mm	2,134mm
Total width	2,438mm	2,438mm
Total length	6,058mm	6,058mm
Dead weight	3,370㎏	3,530㎏
Maximum weight	24,000kg	24,000kg
Tank material	SUS316L	SUS316L
Insulation system	100 mm mineral wool	100 mm mineral wool
Safety valve	2.5-Inch single action × 1	2.5-Inch single action × 1
Ventilation	1.5-inch ball valve	1.5-inch ball valve
Manhole	500mm×1, 300mm×1	500mm×1, 300mm×1
Top loading port	3-inch butterfly valve	3-inch butterfly valve
Lower outlet	3-inch ball valve	3-inch ball valve

We have low-height-type ISO tank containers!

Low Height Type

These containers realize a height of 1,980 mm. Tanker trucks can use loading facilities while carrying these containers. Ventilation lines can also connect to the bottom of these containers. JOT always has a variety of hose cases and other accessories!

※The figure in the frame can be scrolled left and right.

	Low Height 11,000L Type	Low Height 14,000L Type
Total height	1,980mm	1,980mm
Total width	2,438mm	2,438mm
Total length	6,085mm	6,085mm
Dead weight	2,650㎏	2,730㎏
Maximum weight	24,000kg	24,000kg
Tank material	SUS316L	SUS316L
Insulation system	100 mm mineral wool / 100 mm glasswool	50 mm mineral wool / 50 mm glasswool
Safety valve	2.5-Inch single action × 1	2.5-Inch single action × 1
Ventilation	1.5-inch ball valve	1.5-inch ball valve
Manhole	500mm×1, 300mm×1	500mm×1, 300mm×1
Top loading port	3-inch butterfly valve	3-inch butterfly valve
Lower outlet	3-inch ball valve	3-inch ball valve

JOT can provide a special treatment inside of tank!

Special Treatments on Tank Interior

We can fabricate order-made containers with special anti-corrosive properties. Please contact us about any problems that you may have transporting corrosive substances.

We can propose an order-made container!

Specialty Containers

We can fabricate specialty order-made containers based on customer requirements. Please feel free to contact us.

Option specifications (Examples)

Optional equipment is also available to mount to these containers.Meticulously responding to our customer’s needs

Example of loaded product

We have a track record of handling over 200 types of cargo, from all manner of chemical products to plastics and food products.

Safety is Our Top Priority

In order to meet the broad transportation needs of today, we own over 7,000 containers with a number of different characteristics. We have put together a prompt delivery system for our ISO tank containers by maintaining accurate inventory control. And by including additions such as IBC's or containers for beaded substances, we can also build something custom-made just for you.

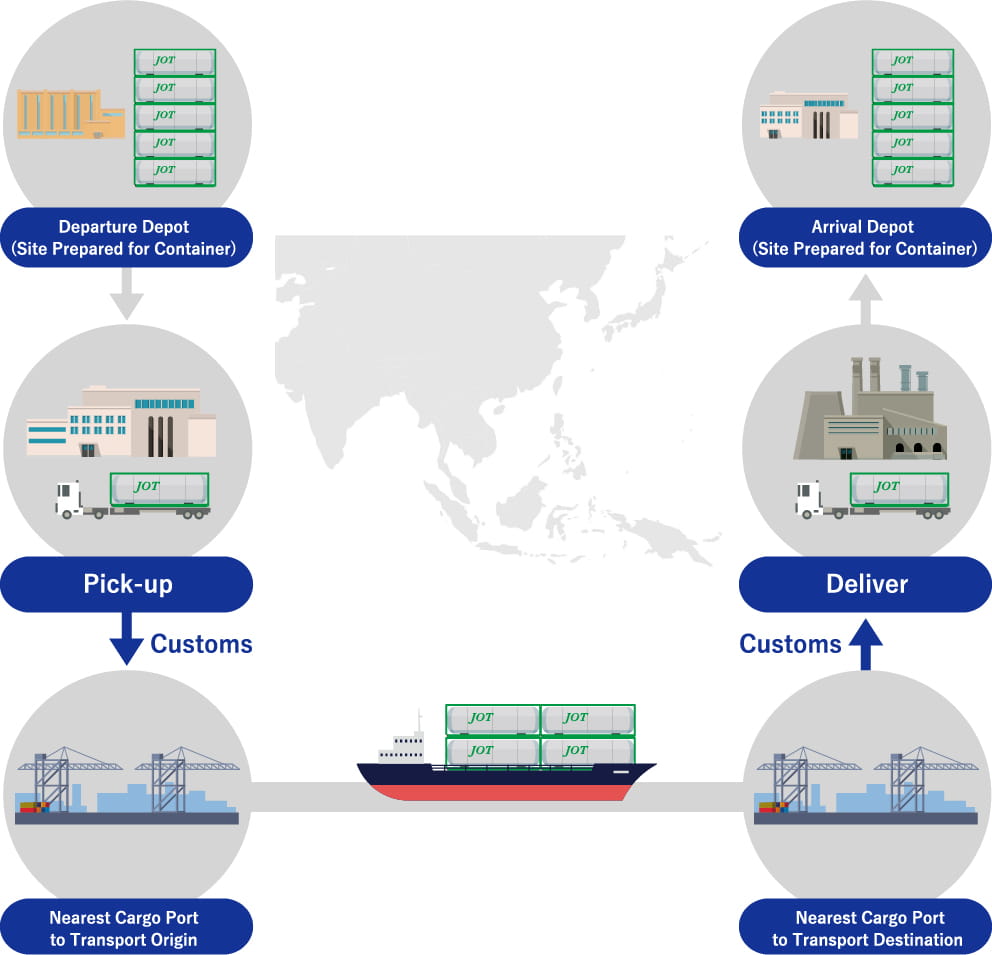

We can propose transport by rail, sea, and land!

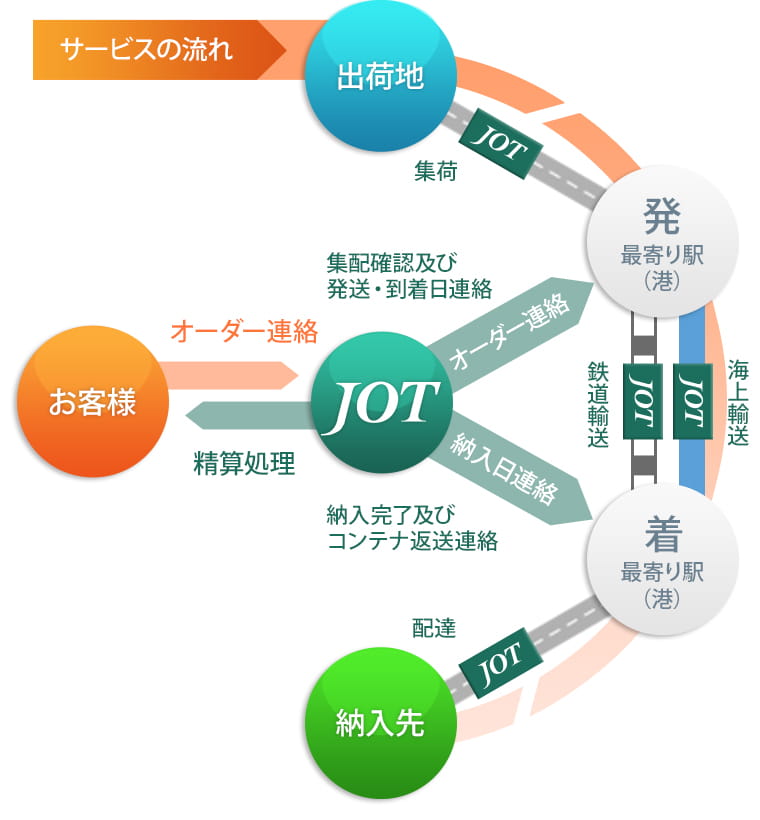

Domestic Transport Services

We take care of everything—from setting up a transport system with the optimal combination of railroads, automobiles, and ships all the way through making the arrangements for daily orders and squaring up accounts. JOT Group is proud to offer this "one-stop service" built on our nationwide distribution network and a wealth of experience cultivated over many years.
